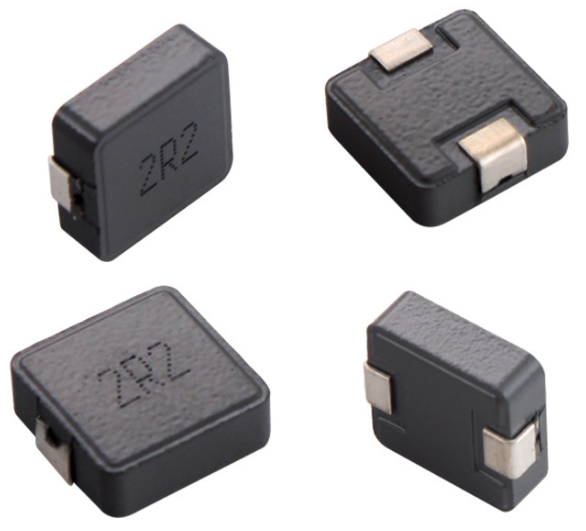

》合金大电流一体成型贴片电感YPBIS系列 |
|
|
SMT Unshielded Power Inductors
YPBIS0302
/YPBIS0402
/
YPBIS0502
/YPBIS0603/YPBIS1003/
YPBIS1205
/
YPBIS1707 |
 |
|
Features (特長)
● Magnetically
shielded construction (閉磁路構造設計，抗电磁干扰优越，超低蜂鸣噪声)
● Compact and
thin (輕便薄小，耐大电流最高可达60A，工作频率可达5MHz以上)
● Large
Current and Low DCR (大電流低直流阻抗，适合高频和高温环境使用)
|
 |
|
Product Identification (產品識別)
YPBIS0402-
(Ex.YPBIS0402-3R3M)
 1
2 3
(1) SMT Shielded Power Inductors (閉磁式
大电流電感)
(2) Inductance (電感值)
(3) Tolerance (誤差值)
( M 20%, N 30%)
|
|
Configurations & Dimensions (結構圖及規格尺寸) |
|
 |
|
Unit In mm |
|
Type
(型式) |
A
|
B
|
C
(max) |
D
|
E
|
|
YPBIS0302 |
3.5±
0.25 |
3.2±
0.25 |
2.0 |
0.70± 0.2 |
1.2± 0.2 |
|
YPBIS0402 |
4.6± 0.25 |
4.1± 0.35 |
2.0 |
0.76± 0.3 |
1.5± 0.3 |
|
YPBIS0502 |
5.7± 0.25 |
5.1± 0.35 |
2.0 |
1.30±
0.3 |
2.3± 0.3 |
|
YPBIS0503 |
5.7± 0.25 |
5.1± 0.35 |
3.0 |
1.30±
0.3 |
2.3± 0.3 |
|
YPBIS0603 |
7.4 MAX |
6.6± 0.20 |
3.0 |
1.60±
0.3 |
3.0±
0.2 |
|
YPBIS0605 |
7.5 MAX |
6.6±
0.20 |
5.0 |
1.60±
0.3 |
3.0±
0.2 |
|
YPBIS1003 |
11.6 MAX |
10.1± 0.3 |
3.0 |
2.50±
0.5 |
3.0± 0.5 |
|
YPBIS1004 |
11.6 MAX |
10.1± 0.3 |
4.0 |
2.50±
0.5 |
3.0±
0.5 |
|
YPBIS1205 |
13.8 MAX |
12.6± 0.3 |
5.0 |
2.70±
0.7 |
3.5±
0.5 |
|
YPBIS1206 |
13.8 MAX |
12.6± 0.3 |
6.0 |
2.70±
0.7 |
3.5±
0.5 |
|
YPBIS1707 |
17.5±
1.0 |
17.5MAX |
7.0 |
2.50±
0.5 |
11.94±
0.3 |
|
|
|
| |
|
|
|
