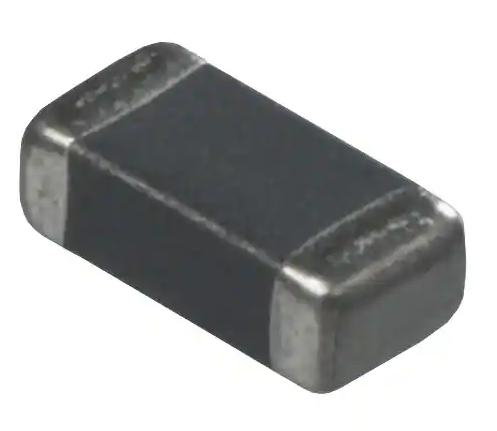

||产品展示》磁珠贴片磁珠片式铁氧体普通磁珠YPCB

Multilayer Chip Beads
YPCB100505(0402) / YPCB160808(0603) / YPCB201209(0805) / YPCB321611(1206) / YPCB322513(1210)/YPCB453215(1812)

Features (特長)

Closed magnetic circuit structure allows high density mounting while preventing crosstalk.

(封閉磁路結構,可高密度安裝並避免干擾)

Excellent solderability and heat resistance.

(良好的焊錫性及耐熱性)


Application (用途)
● Notebook Computer, Disc Drive Unit(CD/DVD), Inkjet Printer, Hard Disk Drive, Copying Machine, Display Monitor, Gaming Machine, Color TV, Video Tape Recorder, DVD Player, Video Camera, Digital Still Camera, Car Electronics, Lowest EMI. (筆記型電腦、磁片驅動裝置、噴墨印表機、硬碟磁碟機、影印機、顯示監視器、遊戲機、彩色電視、錄放影機、光碟機、攝影機、數位相機、汽車電子產品、防干擾對策)




Product Identification (產品識別)
YPCB160808 -        (Ex. YPCB160808 U 121)
       1                2      3
1. Multilayer Chip Beads (積層式晶片磁珠)
(YPCB160808, YPCB201209, YPCB321611...)
2. Material (材質)
3. Impedance (阻抗值)

Configurations & Dimensions (贴片大电流磁珠結構圖及規格尺寸)

                                                                                                                                                          Unit In mm

Type (型式)

A

B

C

D

E

F

G

YPCB100505 (0402)

1.0±0.1

0.5±0.1

0.5±0.1

0.1~0.3

0.5

0.45

0.5

YPCB160808 (0603)

1.6±0.2

0.8±0.2

0.8±0.2

0.2~0.6

0.7

0.7

0.7

YPCB201209 (0805)

2.0±0.2

1.25±0.2

0.9±0.2

0.2~0.8

1.0

0.8

1.0

YPCB321611 (1206)

3.2±0.2

1.6±0.2

1.1±0.2

0.4~1.0

1.4

1.1

2.2

YPCB322513 (1210)

3.2±0.2

2.5±0.2

1.3±0.2

0.3~1.0

  2.3

1.2

  1.8

YPCB453215 (1812)

4.5±0.2

3.2±0.2

1.5±0.2

0.3~1.0

  3.0

1.4

  2.9
