||产品展示》电感 》贴片电感 》高频贴片陶瓷电感CH系列

Multilayer Chip Inductors for High Frequency
YPCH100505(0402) / YPCH160808(0603)
YPCH201209(0805) / YPCH201212(0805)


Features (特長)
●To prevent EMI interference noises between electronic circuits. (
可降低噪音及濾波電磁干擾)
● High Q and high reliability and ceramic material. (
高品質因素、高可靠性、陶瓷材質)
Application (
用途)
● Notebook Computer, Disc Drive Unit(CD/DVD), Inkjet Printer, Hard Disk Drive, Copying Machine, Display Monitor, Gaming Machine, Color TV, Video Tape Recorder, DVD Player, Video Camera, Digital Still Camera, Car Electronics, Lowest EMI. (
筆記型電腦、磁片驅動裝置、噴墨印表機、硬碟磁碟機、影印機、顯示監視器、遊戲機、彩色電視、錄放影機、光碟機、攝影機、數位相機、汽車電子產品、防干擾對策
)


Product Identification (產品識別)
YPCH100505 -
     (Ex. YPCH100505-1N0S)
   1     2   3
1. Multilayer Chip Inductors for High Frequency      (
高頻積層式晶片電感)
(YPCH100505, YPCH160808, YPCH201209, YPCH201212)
2. Inductance (
電感值)
3. Tolerance (
誤差值) ( 參照表
S 0.3nH, J 5%, K 10%, M 20% )

迭层电感

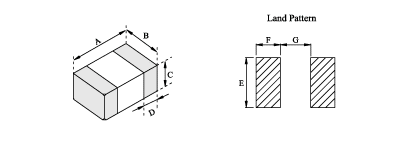

Configurations & Dimensions (結構圖及規格尺寸)

Unit In mm

Type (型式)

A

B

C

D

E

F

G

YPCH100505 (0402)

1.0±0.1

0.5±0.1

0.5±0.1

0.1~0.3

0.5

0.45

0.5

YPCH160808 (0603)

1.6±0.2

0.8±0.2

0.8±0.2

0.2~0.6

0.7

0.70

0.7

YPCH201209 (0805)

2.0±0.2

1.25±0.2

0.85±0.2

0.2~0.8

1.0

0.80

1.0

YPCH201212 (0805)

2.0±0.2

1.25±0.2

1.25±0.2

0.2~0.8

1.0

0.80

1.0
