Features (特長)
● Open Magnetic circuit construction
(開磁路構造設計)
● Compact and thin (輕便薄小)
● Put the electrode with ferrite core
directly, a small surface area allow a
high mounting density. (直接電極設計、降低零件高度)
Applications (用途)
● VTR, OA equipment, LCD television set,
Notebook, portable communication
equipments, DC/DC converters, etc..
(錄放影機、OA儀器、液晶電視、筆記型電腦、小型通信機器、直流轉換器等)
Product Identification (產品識別)
CD32 -
-
(Ex. CD32-1R0M)
1 2
3
(1) SMT Unshielded Power Inductors
(開放式功率電感)
(CD32, CD43, CD52, CD53, CD54, CD73, CD75, CD104,
CD105)
(2) Inductance (電感值)
(3) Tolerance (誤差值) ( J 5%, K 10%, L
15%, M 20%, N 30% )
|

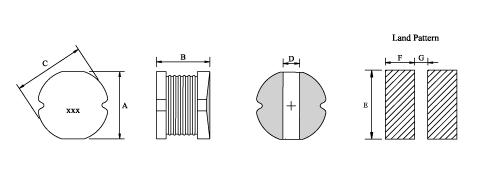

Configurations & Dimensions
(結構圖及規格尺寸)
Unit In mm |
|
|
Type
(型式)
|
A
± 0.3
|
B
|
Φ C
± 0.3 |
D
Typ.
|
E
|
F
|
G
|
|
|
3.0
|
2.3(max) |
3.5
|
1.2
|
3.5
|
1.60
|
0.8
|
|
CD43 |
4.0
|
3.2 ±
0.3 |
4.5
|
1.5
|
4.5
|
2.10
|
0.8
|
|
|
5.2
|
2.5 ±
0.3 |
5.8
|
2.0
|
5.5
|
2.25
|
1.5
|
|
|
5.2
|
3.0 ±
0.3 |
5.8
|
2.0
|
5.5
|
2.25
|
1.5
|
|
|
5.2
|
4.5 ±
0.3 |
5.8
|
2.0
|
5.5
|
2.25
|
1.5
|
|
|
7.0
|
3.5 ±
0.3 |
7.8
|
2.5
|
7.5
|
3.05
|
1.9
|
|
|
7.0
|
5.0 ±
0.3 |
7.8
|
2.5
|
7.5
|
3.05
|
1.9
|
|
|
9.0
|
4.0 ±
0.3 |
10.0
|
2.9
|
9.5
|
3.65
|
2.5
|
|
|
9.0
|
5.4 ±
0.3 |
10.0
|
2.9
|
9.5
|
3.65
|
2.5
|
|
|
Design as Customer's
Requested
Specifications.
(可依客戶特殊需求設計)
|
|
|
