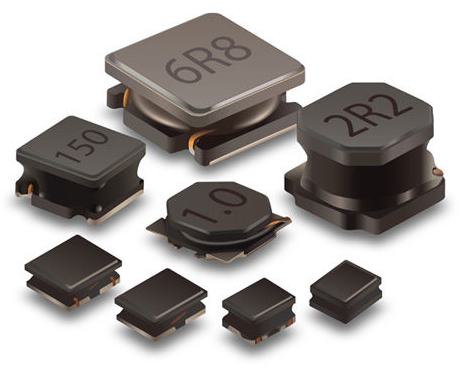

》贴片磁胶电感YPCSQ系列 |
|
|
SMT Shielded Power Inductors
YPCSQ5020
/ YPCSQ5030 / YPCSQ5040 / YPCSQ6028 /
YPCSQ6045
YPCSQ8040
|
 |
|
Features (特長)
● Magnetically
shielded construction (閉磁路構造設計)
● Compact and
thin (輕便薄小)
● Large
Current and Low DCR (大電流低直流阻抗)
|
 |
|
Product Identification (產品識別)
YPCSQ5020 -
(Ex.YPCSQ5020-100M)
 1
2 3
(1) SMT Shielded Power Inductors (閉磁式功率電感)
(YPCSQ5020)
(2) Inductance (電感值)
(3) Tolerance (誤差值)
( M 20%, N 30%)
|
|

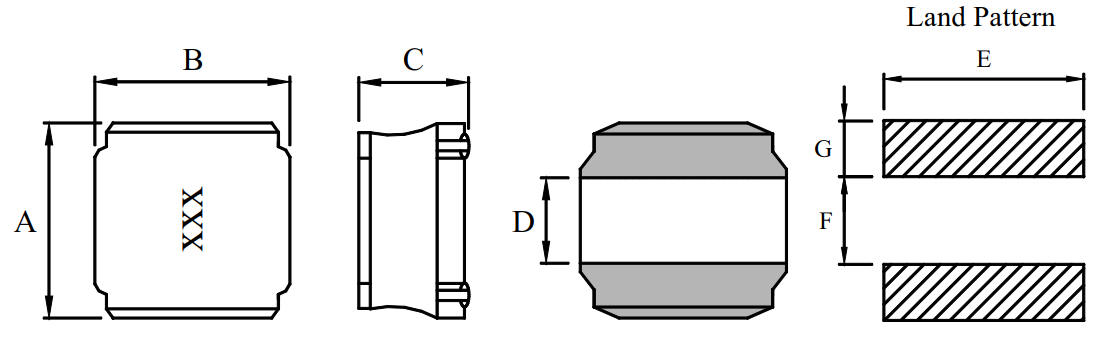

Configurations & Dimensions (結構圖及規格尺寸) |
|
 |
|
Unit In mm |
|
Type
(型式) |
A
|
B
|
C
(max) |
D
(Typ) |
E
|
F |
G |
|
YPCSQ5020 |
5.0±0.2 |
5.0±0.2 |
2.0
|
2.0 |
5.2 |
2.1 |
1.55 |
|
YPCSQ5030 |
5.0±0.4 |
5.0±0.4 |
3.0 |
2.0 |
5.2 |
2.1 |
1.55 |
|
YPCSQ5040 |
5.0±0.4 |
5.0±0.4 |
4.0 |
2.0 |
5.2 |
2.1 |
1.55 |
|
YPCSQ6028 |
6.0±0.4 |
6.0±0.4 |
2.8 |
2.5 |
6.3 |
2.0
|
2.15
|
|
YPCSQ6045 |
6.0±0.4 |
6.0±0.4 |
4.5 |
2.5 |
6.3 |
2.0 |
2.15 |
|
YPCSQ8040 |
8.0±0.4 |
8.0±0.4 |
4.0 |
3.5 |
8.2 |
3.6 |
2.30 |
|
|
|
|
|
