》贴片共模电感YPDRHB系列 |
|
|
SMT Unshielded Power Inductors
YPDRHB124
/YPDRHB125
/
YPDRHB127
/
YPDRHB129 |
 |
|
Features (特長)
● Magnetically
shielded construction (閉磁路構造設計)
● Compact and
thin (輕便薄小)
● Large
Current and Low DCR (大電流低直流阻抗)
|
|
Product Identification (產品識別)
YPDRHB127-
(Ex.YPDRHB127-100M)
 1
2 3
(1) SMT Shielded Power Inductors (閉磁式功率電感)
(YPDRHB124,
YPDRHB125, YPDRHB127, YPDRHB129)
(2) Inductance (電感值)
(3) Tolerance (誤差值)
( M 20%, N 30%)
|
 |
|

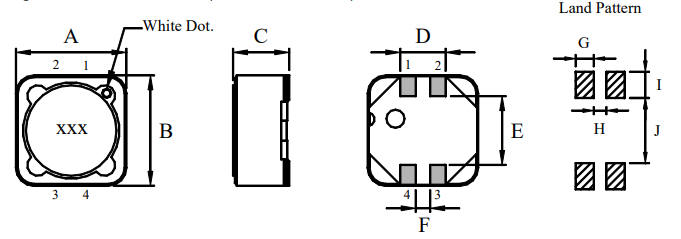

Configurations & Dimensions (結構圖及規格尺寸) |
|
 |
|
Unit In mm |
|
Type
(型式) |
A
± 0.3 |
B
± 0.3 |
C
(max) |
D
± 0.2 |
E
± 0.2 |
F
± 0.2 |
G
|
H |
I |
J |
|
YPDRHB124 |
12.2 |
12.2 |
4.7 |
5.00 |
7.6 |
1.6 |
2.0 |
1.4 |
2.9 |
7.2 |
|
YPDRHB125 |
12.2 |
12.2 |
6.2 |
5.00 |
7.6 |
1.6 |
2.0 |
1.4 |
2.9 |
7.2 |
|
YPDRHB127 |
12.2 |
12.2 |
8.0 |
5.00 |
7.6 |
1.6 |
2.0 |
1.4 |
2.9 |
7.2 |
|
YPDRHB129 |
12.2 |
12.2 |
10.0 |
5.00 |
7.6 |
1.6 |
2.0 |
1.4 |
2.9 |
7.2 |
|
|
|
|
|
