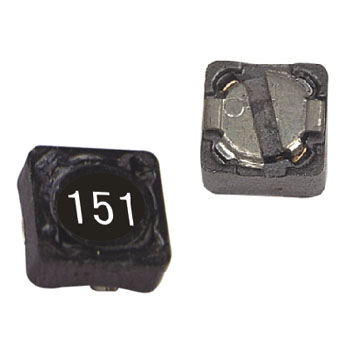

》贴片磁屏蔽电感DRH系列 |
|
SMT Shielded Power
Inductors
YPDRH73 / YPDRH74
YPDRH124 /
YPDRH125 / YPDRH127
/ YPDRH129 |
 |
|
Features (特長)
● Magnetically shielded construction
(閉磁路構造設計)
● Compact and thin (輕便薄小)
● Large Current and Low DCR (大電流低直流阻抗)
Applications (用途)
● VTR, OA equipment, LCD television set,
Notebook, portable communication
equipments, DC/DC converters, etc..
(錄放影機、OA儀器、液晶電視、筆記型電腦 、小型通信機器、直流轉換器等)
|
Product Identification (產品識別)
YPDRH124 -
(Ex.
YPDRH124-3R9N)
1
2 3
1. SMT Shielded Power Inductors
(閉磁式功率電感)
(YPDRH124, YPDRH125, YPDRH127)
2. Inductance (電感值)
3. Tolerance (誤差值) ( 參照表K 10%, L 15%, M
20%, N 30%)
|
 |
|
Configurations & Dimensions (結構圖及規格尺寸) |
|
|
|
Unit In mm |
|
Type
(型式) |
A
(max) |
B
(max) |
C
(max) |
D ±0.2 |
E
±0.2 |
F |
G |
H |
|
YPDRH73 |
7.5 |
7.5 |
3.4 |
2.7 |
5.1 |
3.1 |
1.6 |
4.8 |
|
YPDRH74 |
7.5 |
7.5 |
4.5 |
2.7 |
5.1 |
3.1 |
1.6 |
4.8 |
|
YPDRH124 |
12.3 |
12.3 |
4.5 |
5.0 |
7.6 |
5.4 |
2.8 |
7.0 |
|
YPDRH125 |
12.3 |
12.3 |
6.0 |
5.0 |
7.6 |
5.4 |
2.8 |
7.0 |
|
YPDRH127 |
12.3 |
12.3 |
8.0 |
5.0 |
7.6 |
5.4 |
2.9 |
7.0 |
|
YPDRH129 |
12.5 |
12.5 |
10.0 |
5.0 |
7.6 |
5.4 |
2.9 |
7.0 |
Design as
Customer's Requested
Specifications. (可依客戶特殊需求設計)
|
|
|
|
|
