》共模滤波磁珠YPEMB |
|
|
Common
mode
surface
mount
beads |
 |
|

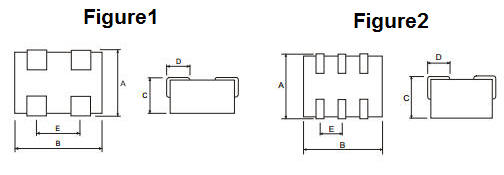

Configurations & Dimensions (共模滤波磁珠結構圖及規格尺寸) |
|
  |
|
Unit In mm |
|
Type
(型式) |
Fig |
Impedance(Z)
阻抗值 (Ω)MIN |
DC Resistance |
A
±0.3 |
B
±0.30 |
C
±0.2 |
D
±0.20 |
E
±0.2 |
|
10MHz |
25MHz |
100MHz |
（mΩ）Max. |
| YPEMB455625 |
1 |
10 |
23 |
35 |
0.3 |
4.5 |
5.6 |
2.5 |
1.35 |
1.30 |
| YPEMB604515 |
2 |
15 |
23 |
38 |
0.9 |
6.0 |
4.5 |
1.5 |
1.30 |
2.54 |
|
YPEMB865626 |
1 |
20 |
30 |
48 |
1.0 |
8.9 |
5.6 |
2.85 |
1.35 |
2.54 |
|
|

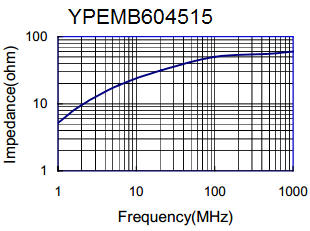

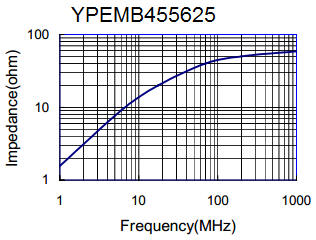

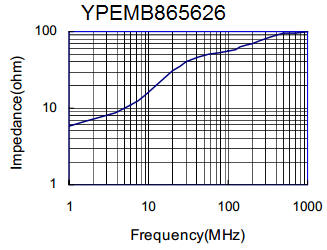

Common Mode Bead Impedance(共模滤波磁珠曲线图) |
 |
 |
 |
Applications：
Common-mode surface mount beads are available to filter the EMI of the board. They can decrease DCR and increase current carrying capacity; |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
