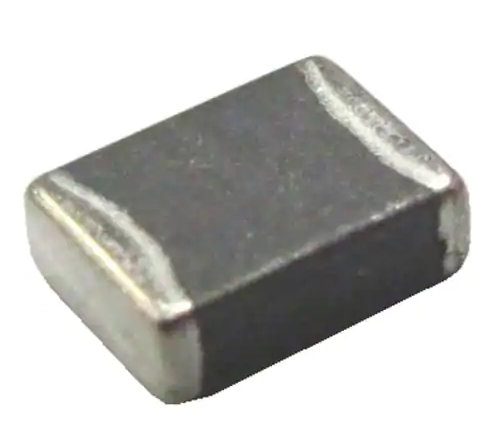

||产品展示》磁珠贴片磁珠叠层片式铁氧体大电流磁珠YPPB

Multilayer Chip Beads for High Current
YPPB160808(0603) / YPPB201209(0805)
YPPB321611(1206) / YPPB322513(1210)

YPPB453215(1812)

Features (特長)

Closed magnetic circuit structure allows high density mounting while preventing crosstalk.

(封閉磁路結構,可高密度安裝並避免干擾)

Excellent solderability and heat resistance.

(良好的焊錫性及耐熱性)

 High current raging up to 1.5-9A. (大電流達1.5-9A)

 High impedance over a wide frequency range to eliminate EMI/RFI.

(在较宽的频率范围内有高阻抗值及EMI/RFI消除抑制效果)


Application (用途)
● Notebook Computer, Disc Drive Unit(CD/DVD), Inkjet Printer, Hard Disk Drive, Copying Machine, Display Monitor, Gaming Machine, Color TV, Video Tape Recorder, DVD Player, Video Camera, Digital Still Camera, Car Electronics, Lowest EMI. (筆記型電腦、磁片驅動裝置、噴墨印表機、硬碟磁碟機、影印機、顯示監視器、遊戲機、彩色電視、錄放影機、光碟機、攝影機、數位相機、汽車電子產品、防干擾對策)




Product Identification (產品識別)
YPPB160808 -        (Ex. YPPB160808 L 121)
       1                2      3
1. Multilayer Chip Beads for High Current (高電流積層式晶片磁珠)
(YPPB160808, YPPB201209, YPPB321611...)
2. Material (材質)
3. Impedance (阻抗值)

Configurations & Dimensions (贴片大电流磁珠結構圖及規格尺寸)

                                                                                                                                                           Unit In mm

Type (型式)

A

B

C

D

E

F

G

YPPB160808 (0603)

1.6 ± 0.2

0.8 ± 0.2

0.8 ± 0.2

0.2~0.6

0.7

0.7

0.7

YPPB201209 (0805)

2.0 ± 0.2

1.25 ± 0.2

0.9 ± 0.2

0.2~0.8

1.0

0.8

1.0

YPPB321611 (1206)

3.2 ± 0.2

1.6 ± 0.2

1.1 ± 0.2

0.3~1.0

1.4

1.1

2.2

YPPB322513 (1210)

3.2 ± 0.2

2.5 ± 0.2

1.3 ± 0.2

0.3~1.0

2.3

1.2

1.8

YPPB453215 (1812)

4.5 ± 0.2

3.2 ± 0.2

1.5 ± 0.2

0.3~1.0

3.0

1.4

2.9
