||产品展示》电感 》贴片电感
》贴片开放式功率电感YPSDR系列 |
|
|
SMT Unshielded Power Inductors
YPSDR3308
/YPSDR3316
/
YPSDR3340
/
YPSDR5022 |
 |
|
Features (特長)
● Open
Magnetic circuit construction (開磁路構造設計)
● Compact and
thin (輕便薄小)
● Mn-Zn
material core (錳鋅材之鐵芯)
● Available in
various sizes. (多種尺寸可供選擇)
Applications (用途)
● Notebook,
VGA card, DC/DC converter, PDA. (筆記型電腦、電腦顯示卡、直流轉換器、
PDA)
|
|
Product Identification (產品識別)
YPSDR3308-
(Ex.YPSDR3308-100M)
 1
2 3
(1) SMT Unshielded Power Inductors (開放式功率電感)
(YPSDR3308,
YPSDR3316, YPSDR3340)
(2) Inductance (電感值)
(3) Tolerance (誤差值)
( K 10%, L 15%, M 20%, N 30%)
|
 |
|

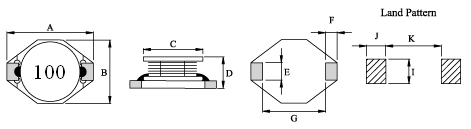

Configurations & Dimensions (結構圖及規格尺寸) |
|
 |
|
Unit In mm |
|
Type
(型式) |
A
(max) |
B
(max) |
C
± 0.3 |
D
(max) |
E
± 0.3 |
F
± 0.3 |
G
± 0.3 |
I |
J |
K |
|
YPSDR3308 |
12.95 |
9.40 |
8.38 |
3.00 |
2.54 |
2.54 |
7.62 |
2.79 |
2.92 |
7.37 |
|
YPSDR3316 |
12.95 |
9.40 |
8.38 |
5.21 |
2.54 |
2.54 |
7.62 |
2.79 |
2.92 |
7.37 |
|
YPSDR3340 |
12.95 |
9.40 |
8.38 |
11.43 |
2.54 |
2.54 |
7.62 |
2.79 |
2.92 |
7.37 |
|
YPSDR5022 |
18.54 |
15.24 |
12.70 |
7.11 |
2.54 |
2.54 |
12.70 |
2.79 |
2.92 |
12.45 |
|
|
|
|
|
