||产品展示》磁珠贴片磁珠五孔贴片大电流磁珠YPSM5H

SMD Wide Band Beads

Configurations & Dimensions (宽带扼流磁珠結構圖及規格尺寸)

                                                                                                                                                           Unit In mm

Type
(型式)

Impedance(Z)
阻抗值 (Ω)MIN

Rated

Current

DC Resistance

A
±0.
25

B
±0.
25

C
±0.25

D



10MHz

50MHz 100MHz

(A)

(mΩ)Max.
YPSM5H-1.5T 230 400 430 10.0 7.5 5.0 4.6 8.5 14.5

YPSM5H-2.5T

300 625 600 10.0 7.5 5.0 4.6 8.5 14.5

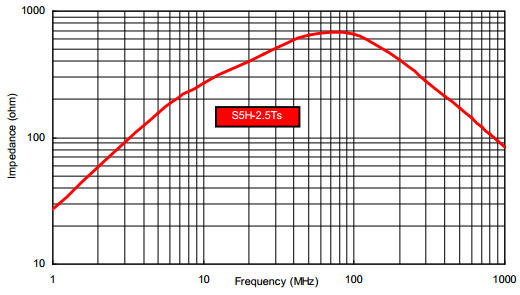

Common Mode Bead Impedance(宽带扼流磁珠曲线图)

Applications: SM5H Series (SMD Wire Wound Bead) is a SMD type bead, a ferrite core with 2.5ts copper wire winding directly. It’s often used for signal filter or DC line filter to suppress outside noise at communication equipments because it’s high impedance and large rated current.
