||产品展示》磁珠 》插件磁珠
》八脚滤波磁珠YPSMF |
|
|
Common
mode
surface
mount
beads |
 |
| Configurations & Dimensions (八脚滤波磁珠結構圖及規格尺寸) |
|
|
|
Type
(型式) |
Impedance(Z)
阻抗值 (Ω)MIN |
DC Resistance |
A
±0.3 |
B
±0.30 |
C
±0.3 |
D
±0.10 |
E
REF |
|
|
25MHz |
100MHz |
（mΩ）Max. |
| YPSMF111110 |
150 |
220 |
0.3 |
10.9 |
10.9 |
10.1 |
2.54 |
7.62 |
|
|
|

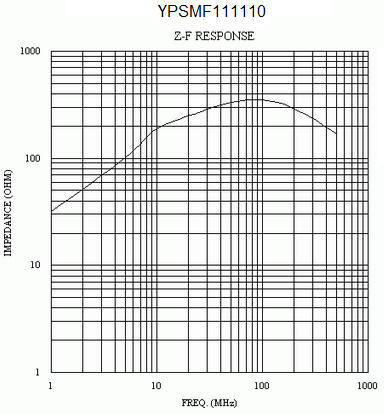

Common Mode Bead Impedance(八脚滤波磁珠曲线图) |
|
|
Applications: These PC Beads are mainly used in the PC board of personal computers, microcomputers and relative devices to filter EMI from outside.
|
|
|
|
|
|
|
|
|
