SMT Shielded Power Inductors
YPDRF6028
/ YPDRF7028 / YPDRF7045 / YPDRF73C /
YPDRF75C
YPDRF10145
/ YPDRF12555 / YPDRF12565 / YPDRF12575 |
 |
|
Features (特長)
● Magnetically
shielded construction (閉磁路構造設計)
● Compact and
thin (輕便薄小)
● Large
Current and Low DCR (大電流低直流阻抗)
Applications (用途)
● Computers,
DC/DC converter, VCR Camera. (電腦、直流轉換器、攝影機)
● Notebook,
Portable communication equipments, DC/DC
converters. (筆記型電腦、小型通信機器、直流轉換器)
|
|
Product Identification (產品識別)
YPDRF6028 -
(Ex.YPDRF6028-100M)
 1
2 3
(1) SMT Shielded Power Inductors (閉磁式功率電感)
(YPDRF6028)
(2) Inductance (電感值)
(3) Tolerance (誤差值)
( K 10%, L 15%, M 20%, N 30%) |
 |
|

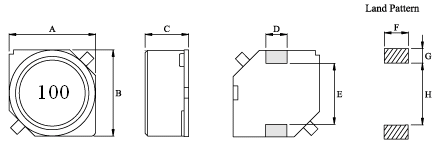

Configurations & Dimensions (結構圖及規格尺寸) |
|
 |
|
Unit In mm |
|
Type
(型式) |
A
(max) |
B
(max) |
C
(max) |
D
± 0.2 |
E
(max) |
F |
G |
H |
|
YPDRF6028 |
6.2 |
6.2 |
3.0 |
1.8 |
3.0 |
2.2 |
1.8 |
2.5 |
|
YPDRF7028 |
7.2 |
7.2 |
3.0 |
2.0 |
4.5 |
2.2 |
1.5 |
4.9 |
|
YPDRF7045 |
7.2 |
7.2 |
4.8 |
2.0 |
4.5 |
2.2 |
1.5 |
4.9 |
|
YPDRF73C |
7.4 |
7.4 |
3.5 |
2.0 |
5.4 |
3.0 |
2.0 |
4.4 |
|
YPDRF75C |
7.4 |
7.4 |
5.1 |
2.0 |
5.4 |
3.0 |
2.0 |
4.4 |
|
YPDRF10145 |
10.4 |
10.4 |
4.8 |
3.0 |
6.2 |
3.2 |
2.5 |
5.6 |
|
YPDRF12555 |
12.8 |
12.8 |
5.8 |
3.0 |
8.5 |
3.2 |
2.5 |
8.0 |
|
YPDRF12565 |
12.8 |
12.8 |
6.8 |
3.0 |
8.5 |
3.2 |
2.5 |
8.0 |
|
YPDRF12575 |
12.8 |
12.8 |
7.8 |
3.0 |
8.5 |
3.2 |
2.5 |
8.0 |
|
|
|
|
|
